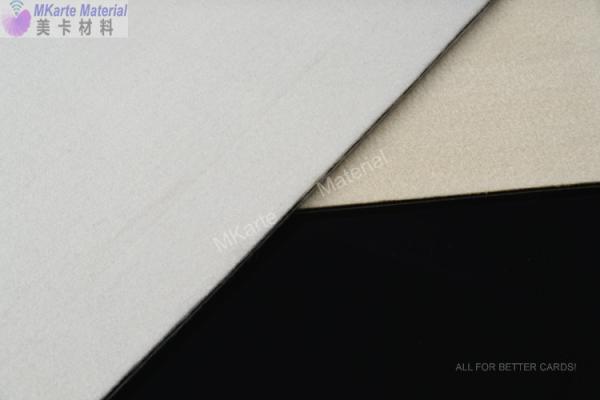

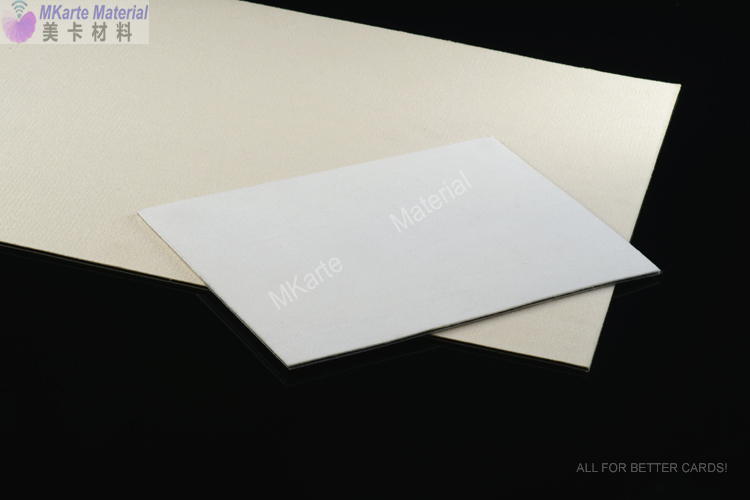

3.0mm Thickness High-adhesion White Silicon Rubber Cushion Pad For Card Lamination
(also named as : lamination pad, rubber pad, card laminator cushion pad, silicon rubber pad, plastic card lamination pad, card material)
Production Specification and Introduction:
3.0mm Thickness High-adhesion White Silicon Rubber Cushion Pad For Card Lamination is designed for the lamination process for various plastic cards including bank card , credit card , and royalty card . It works with lamination steel plate in the plastic card lamination process .
The structure of white silicon cushion pads is white heatproof silicon rubber layers on the surfaces with glass filer in the middle .
| 1. High-adhesion White Silicon Rubber Cushion Pad For Card Lamination - Features |
Key Features:
1. It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination .
2. It can transfer heat quickly and evenly , which can improve production efficiency and energy conservation .
3. It has good performance of high temperature resistance and excellent elastic resilience .
4. It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates , which can extend the service life of both lamination steel plates and template .
| 2. High-adhesion White Silicon Rubber Cushion Pad For Card Lamination - Description and Technical Items |
Detailed Description
(1) Silicon rubber cushion
(2) High tensile strength and tearing strength,
(3) Long service life,
(4) Heat resistant up to 250
(5) Product Application: It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .
(6) Product specification: 1) thickness: 1.5- 3.5mm 2) maximum width: 3800mm with no joint 3) any length 4) color: white
Technical Items:
| Model number | MRP-1 |
| Thickness | 1.5- 3.5mm (Thickness tolerance: ±0.05mm) |
| Pad size | in sheet, A3, A4 or custom-made size |
| Breaking strength | 80 Mpa |
| Hardness SHORE A | 55±5 |
| Adhesive force N/mm | 2.5 |
| Breaking extensibility | 350 |
3. High-adhesion White Silicon Rubber Cushion Pad For Card Lamination - Technical Parameters
|
Parameters :
1. Heatproof performance: 200℃
2. Tensile strength: 80 N/mm
3. Adhesion: 80 N/mm
4. Hardness SHORE A: 55±5
5. Thickness: 3mm
6. Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)
7.Packaging box: Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
4. High-adhesion White Silicon Rubber Cushion Pad For Card Lamination - Application
|
It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates , which can extend the service life of both lamination steel plates and template .
| 5. High-adhesion White Silicon Rubber Cushion Pad For Card Lamination -Package |
Packaging box:
Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
