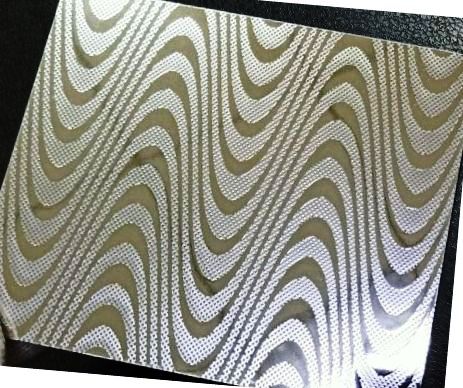

Patterned / textured Card Laminated Steel Plates For Personalized Pattern Finish Card Lamination
Production Specification
| 1. Patterned / textured Card Laminated Steel Plates Introduction |
Patterned / textured Card Laminated Steel Plates are mainly used for personalized pattern finish card lamination. It can well ensure perfect plastic card surface finish after lamination . Our plates are being widely used by many card factories in both China and foreign countries worldwide .
| 2. Patterned / textured Card Laminated Steel Plates Specification |
Key Features:
1. One side ( pattern side ) is covered with protection foils ( blue thin films ) to ensure good protection.
2. Only one side has the special pattern and another side has no pattern which will not contact the card surface in laminator. .
3. There are no scratches and dust on pattern surface and possibly there is slight scratch on another non-pattern side.
4. The edges are smooth and deburred with the round curved corners.
Technical Parameters :
Plate size ( L×W ): A4, A3 or custom-made size
Plate thickness: 0.8 mm ( Thickness tolerance: ±0.05mm )
Dimension tolerance: ±1mm for length and width.
Plate flatness level: maximum 1 mm /m
Surface pattern: special pattern
Surface hardness: HRC80±20
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Packaging box: solid plywood carton with soft cushion protection inside
Technical Parameters:
| Surface pattern | special pattern |
| Plate Thickness | 0.8 mm (Thickness tolerance: ±0.05mm) |
| Plate size ( L×W ) | in sheet , A3 , A4 or as customer's requirement |
| Plate flatness level | maximum 1 mm / m |
| Dimension tolerance | ±1mm for length and width |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Application | used for personalized pattern finish card lamination |
| Packaging box | solid plywood carton with soft cushion protection inside |

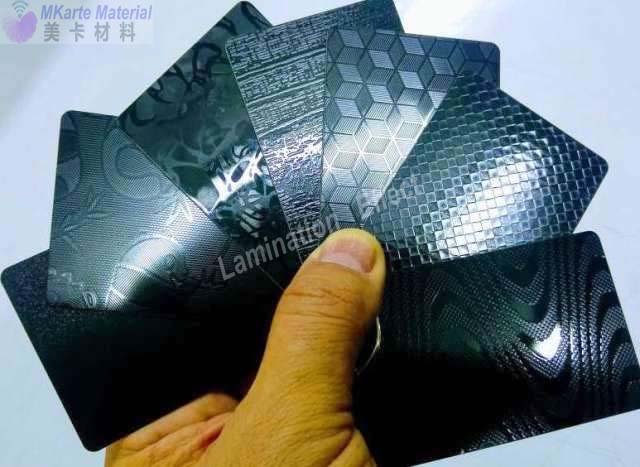

| 3. Application of Patterned / textured Card Laminated Steel Plates |
* Customer design can be accept.

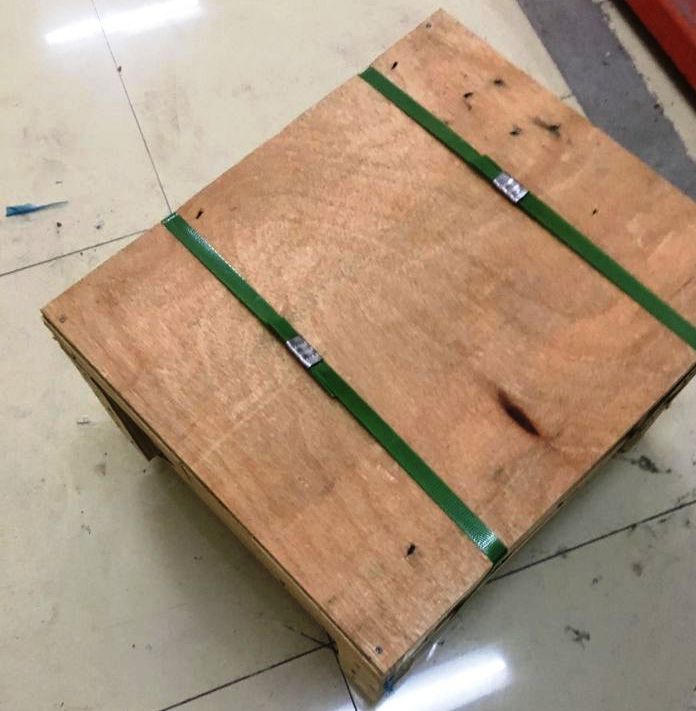

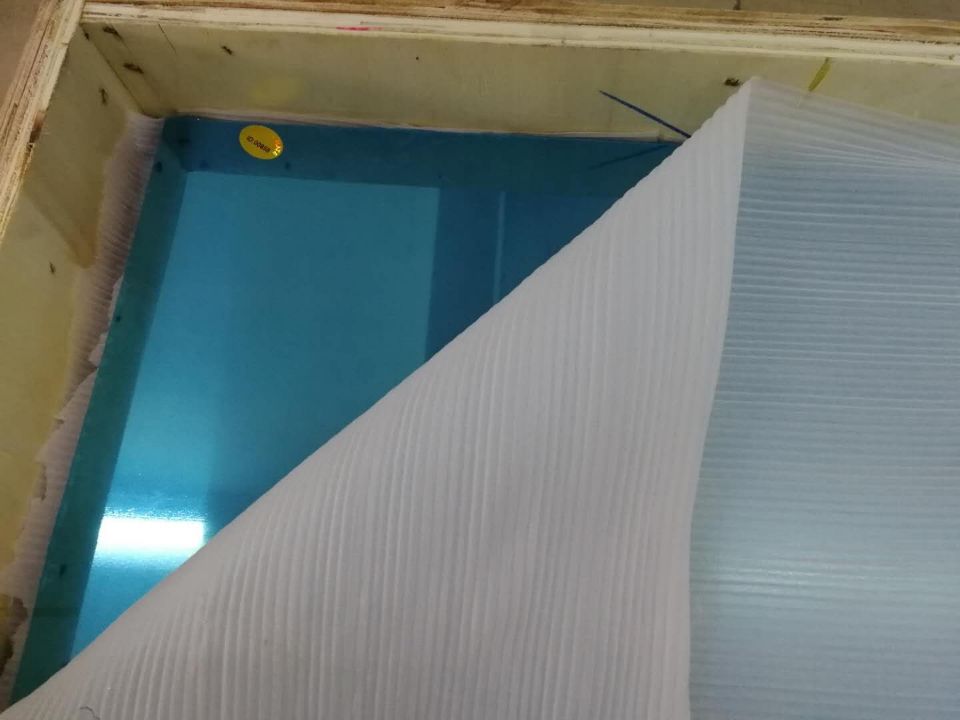

| 4. Packing of Patterned / textured Card Laminated Steel Plates |
